Main technical parameters
Model |
Casa 60j |
Casa 100j |
|
Power supply |
220V/50Hz |
220V/50Hz |
|
Remote control range |
≥30m |
||
Remote control model |
Single/Three button |
||
Max. gate weight |
600Kg |
1000Kg |
|
Motor power |
280W |
400W |
|
Output torque |
16N·m |
22N·m |
|
Work duty |
S2,15 Min |
S2,20 min |
|
Limit switch |
Spring limit switch |
||
Frequency |
433.92MHz |
||
Output shaft height |
50mm |
||
Noise |
≤58dB |
≤60dB |
|
Maximum no: of remote control |
25 |
||
Environmental temperature |
-20°C~+70°C |
||
Gate moving speed |
13m/min |
13m/min |
|

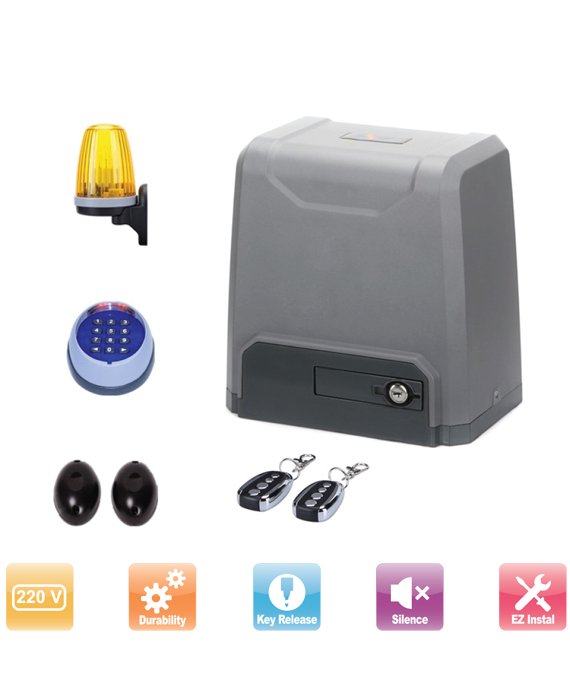

The Casa J Series AC sliding gate opener is designed for commercial and industrial use, weight up to 600/1000 Kg and operating distance up to 12 meters.
Run smoothly, unique appearance and powerful.
Built in control board
Keypad / single button interface.
Alarm lamp, Photo beam & safety beam interface.
User can select auto-close function.
Optional for spring limit switch and magnetic limit switch
Manual key release design for emergency purposes.
Automatic stop when hitting obstacle during opening, auto-reverse when hitting obstacle during closing. (Smart version)
